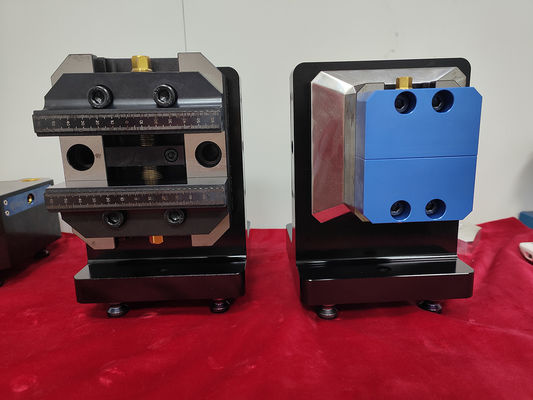

Mauaul zero point clamping quick-change pallet system SK96-A90

The four-hole zero-point locator is a positioning tool that can quickly exchange fixtures and fixed
fixtures, The standard installation method enables tools such as vices, pallets, chucks, etc, to be
quickly and repeatedly changed between various cnc machine tools.

Available with predefined mounting holes or without hole pattern for individual adaptation to milling machine tables, clamping towers, pallets or CNC rotary tables.

No need to disassemble and  calibrate time.

Size:150x149x199mm
Repeat position:0.005mm

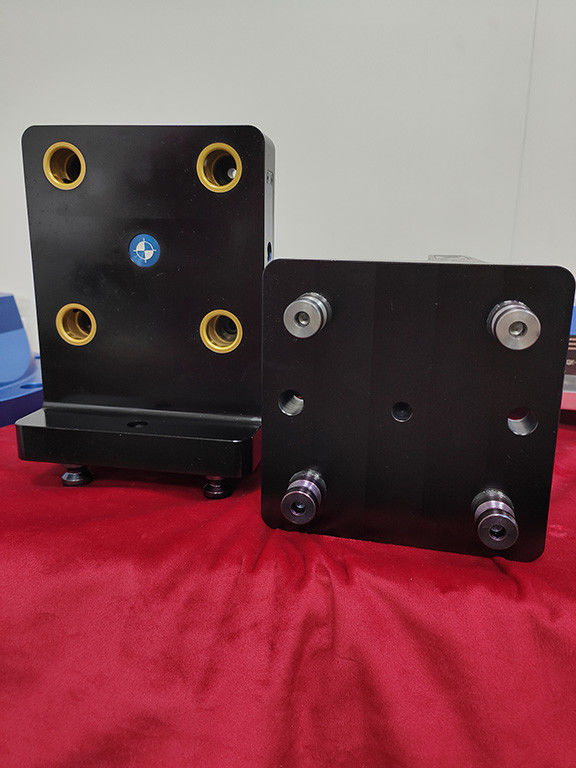

Locking force:22KN (4pcs pull stud)
Material: alloy steel
Weight:5.0Kg
