Flexible 4th Axis Fixture / Axis Vise For Cnc Milling Machine 75150D

4-Axis Maual Flexible Self Centering Vise For Cnc Milling Machine 75150D

1, Self Centring Precision Vise is suitable for 4 and 5 Axis usage, either in horizontal or vertical machining.

2, Self Centring Precision Vise is suitable for 4 and 5 Axis CNC Rotary Table usage, either in horizontal or vertical machining.

Vise precision of its center repetition position is within 0.02mm.
3. Using high quality alloy steel. Slideway has high frequence heat treatness at HRC 45 or more to keep the accuracy and its long use life.
4. Vise hard jaw material is full steel and heat treatness at HRC 55 or more.
Owing to its good design to use both sides of jaw since it is exchangeable.

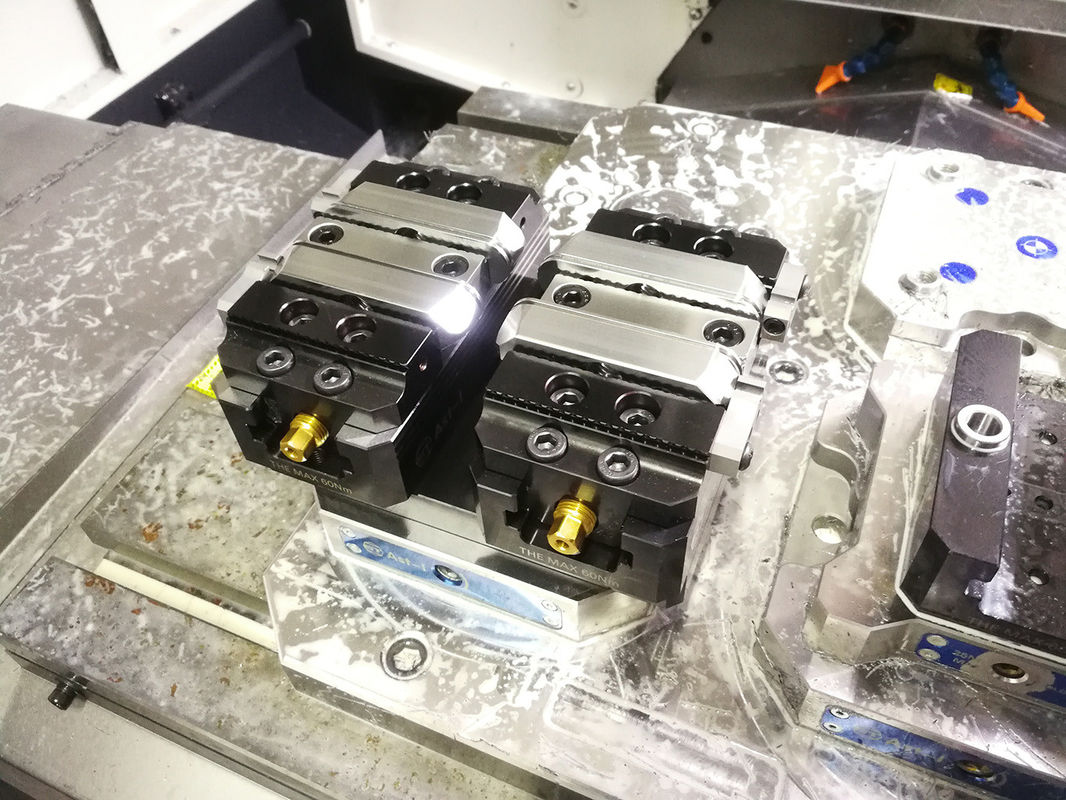

Double working station

Product Description:

Size: 75x150x56m
Clamping range: 0-50mm
Clamp body width: 75mm
Maximum torque: 60Nm
Weight: 3Kg

Max opening 155mm self centering 5 axis vise

1. Material: steel.

2. Warranty: 1 years

5. max clamping range: 0-77mm
