96mm Zero Point Clamping Rectangular CNC Table Clamp Manual Heavy Duty

96mm Zero Point Clamping Rectangular CNC Table Clamp Manual Heavy Duty
96mm Zero Point Clamping Rectangular CNC Table Clamp Manual Heavy Duty
96mm Zero Point Clamping Rectangular CNC Table Clamp Manual Heavy Duty 96mm Zero Point Clamping Rectangular CNC Table Clamp Manual Heavy Duty 96mm Zero Point Clamping Rectangular CNC Table Clamp Manual Heavy Duty

Duży Obraz :  96mm Zero Point Clamping Rectangular CNC Table Clamp Manual Heavy Duty

Szczegóły Produktu:
Miejsce pochodzenia: Chiny
Nazwa handlowa: AST
Numer modelu: SK96-190
Zapłata:
Minimalne zamówienie: 1
Szczegóły pakowania: 200*210*60mm
Czas dostawy: 5-8 dni roboczych
Zasady płatności: T/T
Kontakt

96mm Zero Point Clamping Rectangular CNC Table Clamp Manual Heavy Duty

Opis
Tworzywo: Stal Rozmiar: 150x150x30mm
Powtarzalność: W promieniu 0,005 mm Cechy: Maksymalizuj wydajność wymiany dzięki systemowi punktu zerowego
Gwarancja: 1 rok OEM: Wsparcie
Podkreślić:

96mm Zero Point Clamping

,

Zero Point Clamping Rectangular

,

CNC Table Clamp Manual

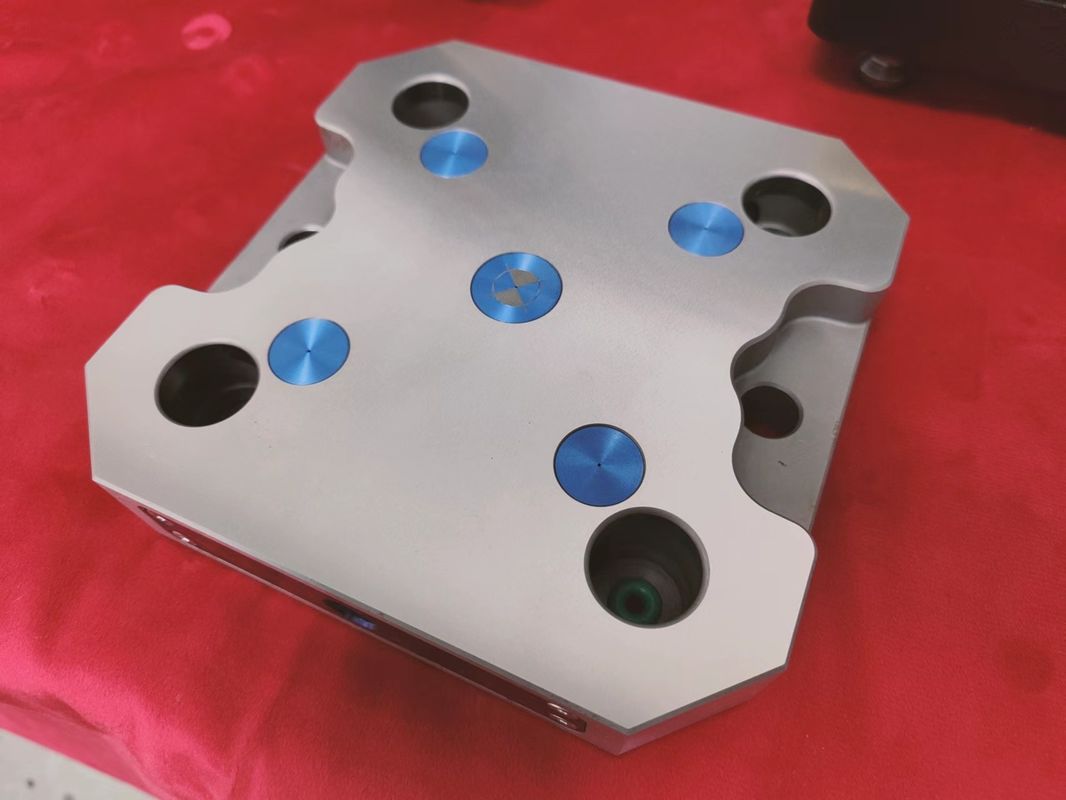

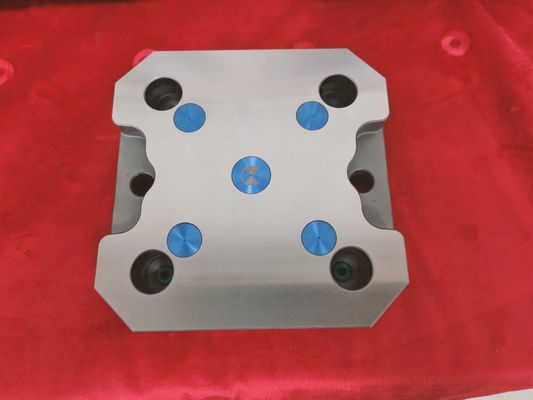

Manual Heavy Duty Zero Point Clamping Quick-Change Single Plates System SK96-S190



Zero-point plates for single clamping in round,   and square design in the two grid dimensions 52 and 96 mm.

Available with predefined mounting holes or without hole pattern for individual adaptation to machine tables, clamping towers, pallets or CNC rotary tables.


No need to disassemble and  calibrate time.



Maximize changeout efficiency with zero point quick exchange system



Size:150x150x30mm
Repeat position:0.005mm
Locking force:22KN (4pcs pull stud)
Material: steel
Weight:4.0Kg



96mm Zero Point Clamping Rectangular CNC Table Clamp Manual Heavy Duty 096mm Zero Point Clamping Rectangular CNC Table Clamp Manual Heavy Duty 1

96mm Zero Point Clamping Rectangular CNC Table Clamp Manual Heavy Duty 2

96mm Zero Point Clamping Rectangular CNC Table Clamp Manual Heavy Duty 3

96mm Zero Point Clamping Rectangular CNC Table Clamp Manual Heavy Duty 496mm Zero Point Clamping Rectangular CNC Table Clamp Manual Heavy Duty 5

96mm Zero Point Clamping Rectangular CNC Table Clamp Manual Heavy Duty 696mm Zero Point Clamping Rectangular CNC Table Clamp Manual Heavy Duty 7
