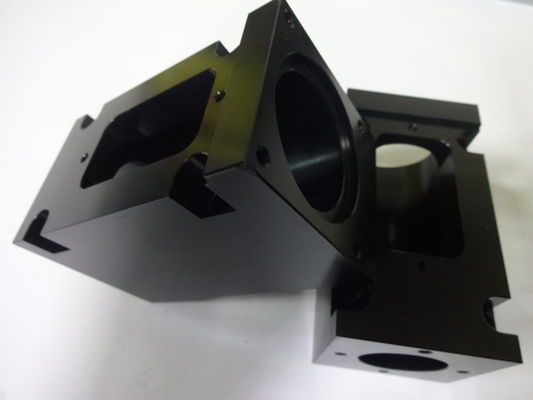

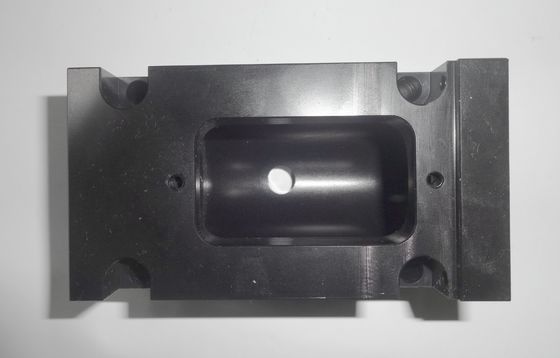

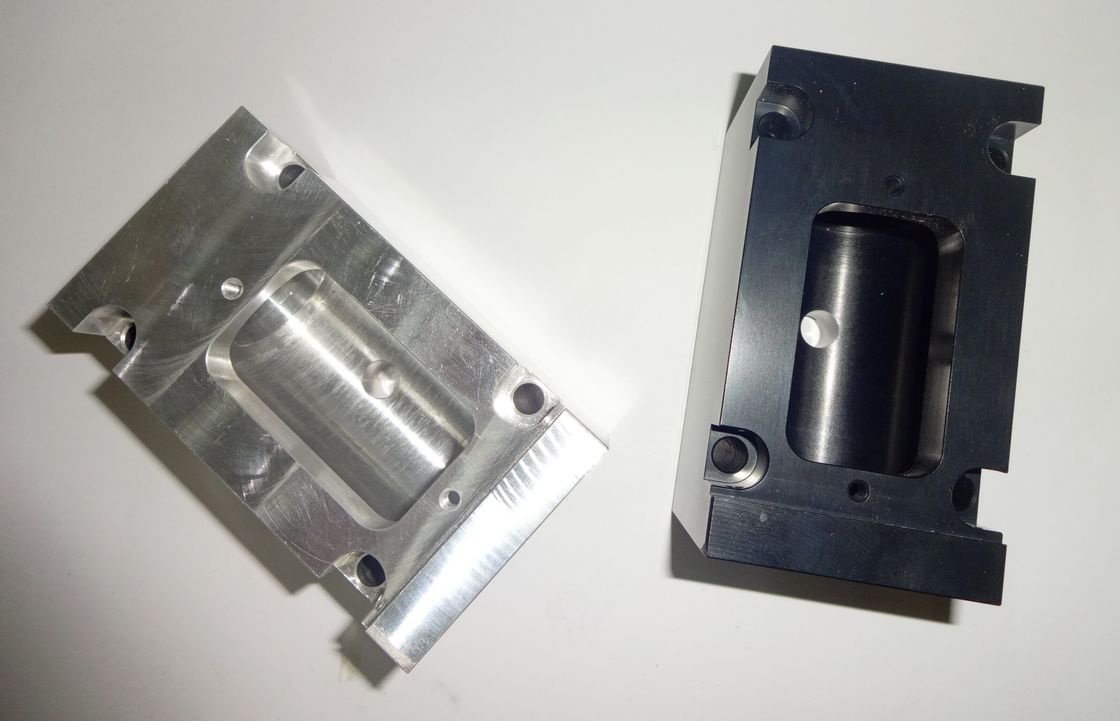

Hardness Custom CNC Aluminum Parts 120mm Anodized CNC Milling Parts

Hardness Custom CNC Aluminum Parts 120mm Anodized CNC Milling Parts
Hardness Custom CNC Aluminum Parts 120mm Anodized CNC Milling Parts Hardness Custom CNC Aluminum Parts 120mm Anodized CNC Milling Parts Hardness Custom CNC Aluminum Parts 120mm Anodized CNC Milling Parts Hardness Custom CNC Aluminum Parts 120mm Anodized CNC Milling Parts

Duży Obraz :  Hardness Custom CNC Aluminum Parts 120mm Anodized CNC Milling Parts

Szczegóły Produktu:
Miejsce pochodzenia: Dongguan Chiny
Nazwa handlowa: OEM
Numer modelu: Dostosuj 20
Zapłata:
Minimalne zamówienie: 1000 sztuk/styl
Szczegóły pakowania: opakowanie kartonowe
Czas dostawy: zwykle 20 dni roboczych, zgodnie z wymaganiami klienta w celu potwierdzenia
Zasady płatności: T/T
Kontakt

Hardness Custom CNC Aluminum Parts 120mm Anodized CNC Milling Parts

Opis
Obróbka powierzchniowa:: Anodowane na czarno Tworzywo: Aluminium, mosiądz, brąz, miedź, metale hartowane, szlachetne M
OEM: Utrzymany Sprzęt obróbki: Centra obróbcze cnc 3/4/5 osi
Maksymalna średnica: 120mm Format rysunku: 2D/(PDF/CAD)3D(IGES/KROK)
Podkreślić:

Hardness Custom CNC Aluminum Parts

,

Custom CNC Aluminum Parts 120mm

,

Anodized CNC Milling Parts

Customized CNC Milling Service Machining Metal Steel Aluminum Parts Customized 20





The parts are processed by a special process, without deformation after processing, and have permanent dimensional accuracy.

The surface anodized treatment increases the surface hardness and wear resistance of the parts, and it is beautiful and elegant, and the processing knife lines cannot be seen. Precision turning and grinding ensure that the parallelism between the spindle and the mounting surface is within 0.01mm.



Application:

It is suitable for accelerated machining centers, mirror machining centers (high-gloss machines), glass processing machines, and motor mounting supports. It is also suitable for machining centers with low spindle cutting force.



Business Type Factory / Manufacturer
Service CNC Machining
Turning and Milling
CNC Turning
OEM Parts
Material 1). Aluminum: AL 6061-T6, 6063, 7075-T etc
2). Stainless steel: 303,304,316L, 17-4(SUS630) etc
3). Steel: 4140, Q235, Q345B,20#,45# etc.
4). Titanium: TA1,TA2/GR2, TA4/GR5, TC4, TC18 etc
5). Brass: C36000 (HPb62), C37700 (HPb59), C26800 (H68), C22000(H90) etc
6). Copper, bronze, Magnesium alloy, Delrin, POM,Acrylic, PC, etc.
Finish Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish,
Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing,
electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench),
Electro Polishing,Chrome Plating, Knurl, Laser etch Logo, etc.
Main Equipment CNC Machining center(Milling), CNC Lathe, Grinding machine,
Cylindrical grinder machine, Drilling machine, Laser Cutting Machine,etc.
Drawing format STEP,STP,GIS,CAD,PDF,DWG,DXF etc or samples.
Tolerance +/-0.01mm ~ +/-0.05mm
Surface roughness Ra 0.1~3.2
Inspection Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier,CMM
Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge
Capacity CNC turning work range: φ0.5mm-φ150mm*300mm
CNC milling work range: 510mm*1020mm*500mm

customized metal machining centre anodized aluminum stainless steel titanium products milling cnc spare parts machining service



Packaging Details





1. Inner Packages: Plastic Wrap, PE Foam, Bubble Bag, Pearl Cotton, PP Bag, etc.
2. Outer Packages: Carton Box, Wooden Case, Plywood Case, etc.
3. As per Customers' Requirements.


Hardness Custom CNC Aluminum Parts 120mm Anodized CNC Milling Parts 0Hardness Custom CNC Aluminum Parts 120mm Anodized CNC Milling Parts 1Hardness Custom CNC Aluminum Parts 120mm Anodized CNC Milling Parts 2

Our workship photos:


Hardness Custom CNC Aluminum Parts 120mm Anodized CNC Milling Parts 3

Hardness Custom CNC Aluminum Parts 120mm Anodized CNC Milling Parts 4Hardness Custom CNC Aluminum Parts 120mm Anodized CNC Milling Parts 5Hardness Custom CNC Aluminum Parts 120mm Anodized CNC Milling Parts 6Hardness Custom CNC Aluminum Parts 120mm Anodized CNC Milling Parts 7Hardness Custom CNC Aluminum Parts 120mm Anodized CNC Milling Parts 8
