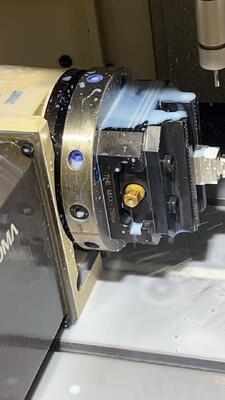

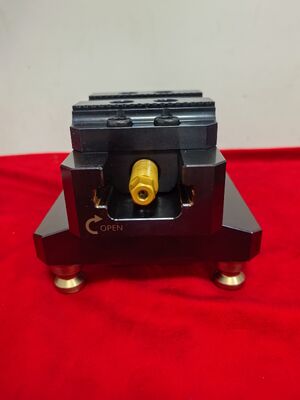

High-Precision 5th Axis Self-Centering Vise
Accuracy: 0.01mm | Suitable for 4-axis CNC milling | Ensures high precision and secure workpiece holding
Product Overview
The Zero Point Fixture is a highly precise and efficient clamping fixture designed to revolutionize CNC machining operations. Engineered to deliver exceptional accuracy and significantly reduce cycle times, this fixture is an indispensable accessory for any CNC workshop aiming to enhance productivity and maintain stringent quality standards.
Key Specifications
- Accuracy: 0.01mm precision
- Dimensions: 208 × 106 × 25mm
- Includes: 4 pull studs for quick attachment
- Cycle time reduction: Up to 80%
- Compatibility: 3, 4, and 5 Axis CNC machines
Applications
The AST SK96-205 Zero Point Fixture is designed for high-precision applications where accuracy is paramount. Its exceptional repeatability within 0.005mm makes it ideal for various machining environments.
Ideal For:
- CNC work with 3, 4, or 5 axis machining centers
- Complex geometries and multi-dimensional milling tasks
- Precision aerospace component manufacturing
- Mold making and automotive parts production
- Batch manufacturing and prototype development
Technical Specifications
| Feature |
Specification |
| Model Number |
AST SK96-205 |
| Repeatability |
Within 0.005mm |
| Locking Force |
18KN |
| Installation Time |
Less than 5 minutes |
| Lifespan |
1 to 5 years |
| Compatible Systems |
4 axis vise and 5 axis clamping systems |
Support & Services
Our Zero Point Fixture is designed to provide precise and repeatable positioning for your machining operations. For optimal performance, ensure proper installation and maintenance according to the user manual.
Available Services:
- Technical support for installation and operation
- Calibration and repair services
- Regular maintenance guidance
- Online support portal with resources
Packing & Shipping
Each Zero Point Fixture is securely packaged in custom-fitted foam within a sturdy, double-walled corrugated cardboard box. This packaging design minimizes movement and absorbs shocks, preventing damage during transit.
Shipping Details:
- Delivery time: 3-7 business days
- Expedited shipping available
- Tracking and insurance options
- Includes user manuals and warranty information
Frequently Asked Questions
Q: What is the AST SK96-205 Zero Point Fixture used for?
A: The AST SK96-205 Zero Point Fixture provides quick and precise workpiece clamping for CNC machines, improving machining efficiency and accuracy.
Q: How does the fixture improve machining accuracy?
A: The fixture ensures repeatable and consistent positioning of workpieces using a precision locating system, minimizing setup time and errors during machining.
Q: Is the fixture compatible with various machine types?
A: Yes, the AST SK96-205 is compatible with a wide range of CNC machines and setups, allowing for flexible and versatile use.
Q: What materials is the fixture made from?
A: The fixture is constructed from high-quality, durable materials to withstand heavy machining environments and ensure long-lasting performance.
Q: How easy is it to install and operate?
A: The AST SK96-205 is designed for straightforward installation and user-friendly operation, enabling quick workpiece changes and reducing machine downtime.
